Trail Camera External Antenna

Trail Camera External Antenna

$120.00

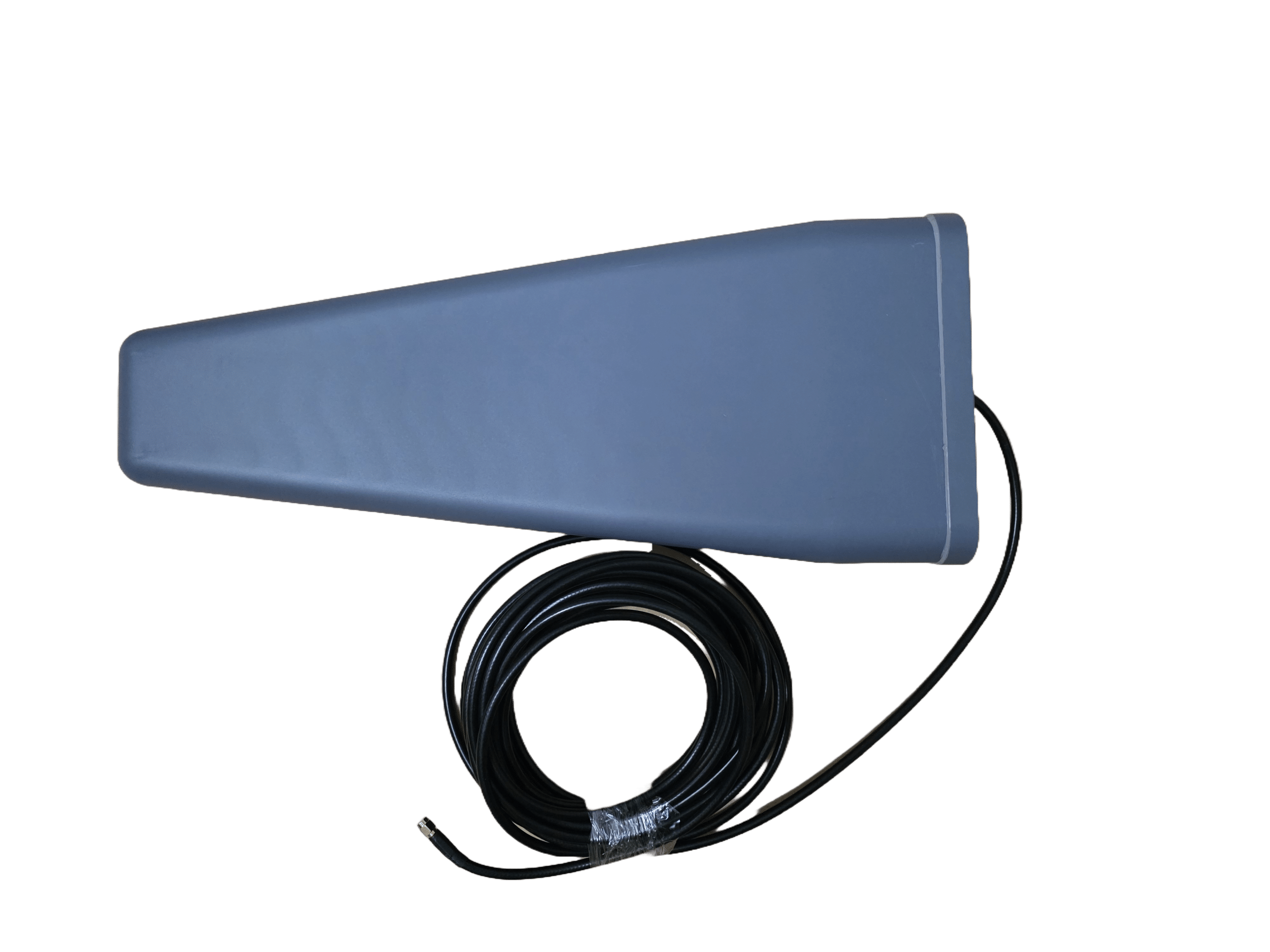

High-gain log-periodic directional antenna designed to significantly improve trail camera connectivity in low-signal and fringe coverage areas.

  • Frequency range: 698–2700 MHz
    (Optimised for NZ 4G LTE bands including 700 MHz)

  • Gain: 12 dBi directional

  • Cable: 10 m high-quality, low-loss coax for minimal signal drop

  • Connector: SMA (plug-and-play)

Compatible with all trail camera brands using an SMA antenna connection.
Ideal for rural, bush, gully, and farm deployments where internal or stub antennas struggle.

In stock

Electrical Specifications
Frequency Range 698-960/1710-2700/3400
Gain 12dBi
VSWR ≤1.5
Input Impedance 50Ω
Polarization Vertical
Horizontal Half Power Angle 60° 50°
Vertical Half Power Angle 45° 35°
Max Input Power 50W
Lightning Protection DC Ground
Mechanical Specifications
Working Temperature -40℃~﹢65℃
Connector Type SMA male/ N male /N female/ FEM female /F male
Cable Type LMR200 Black
Cable Length 10M
Antenna Weight 750g
Size 510x210x70mm
Pole Diameter Φ35~55mm
Rated Wind Velocity 210km/h
Antenna Cover Material ABS
Color Cold gray
Installation

Bracket Size – Supports a pole size of 30 -50mm
